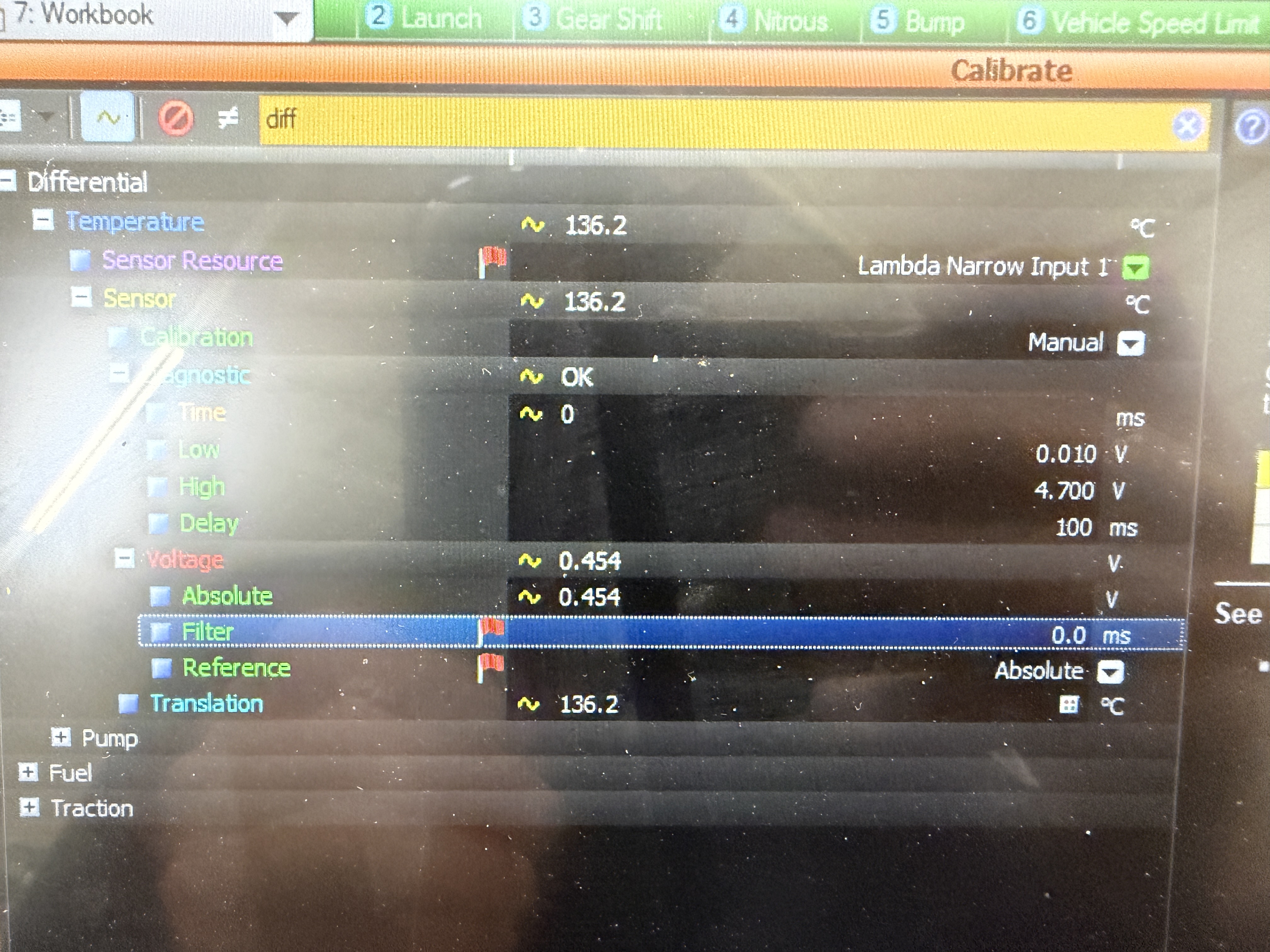

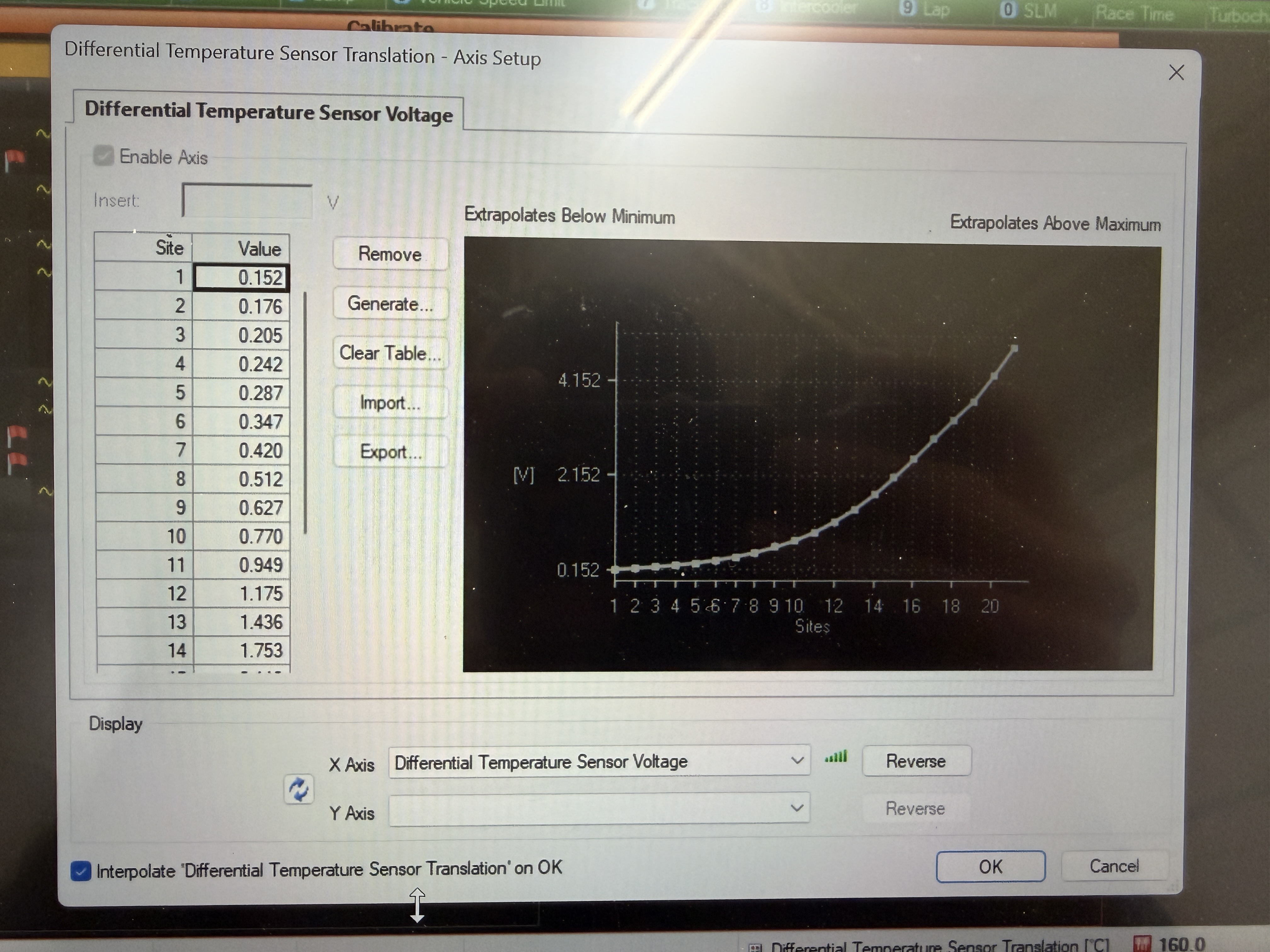

Hey guys, how do i setup this RaceGrade 1/8 temp sensor? they wired it to "Lamda Narrow 1" channel. i have the voltages entered, not sure how to check if pull-up is active.
here's a link to the docs. sorry for the huge pictures.
https://www.milspecwiring.com/RaceGrade ... p_398.html
m150 and RG 2 wire temp
2 posts
• Page 1 of 1
m150 and RG 2 wire temp
by ZT-R on Wed Apr 01, 2026 5:43 am
- Attachments
-
- IMG_1381.JPG (2.52 MiB) Viewed 11 times
-
- IMG_1382.JPG (2.28 MiB) Viewed 11 times
- ZT-R
- Posts: 35
- Joined: Mon Aug 27, 2018 3:34 am
