Accessing LS Ignition and PH Injector Resources

Postby Salasko Racing on Tue Apr 12, 2022 5:50 am

The way I'm doing this in build seems a bit clunky especially considering it's a not ICE project which means there is no ignition or injection. Is there a simple way to do this that I'm missing without having their respective group configurations present in the project?
Salasko Racing

Posts: 26
Joined: Thu Nov 19, 2015 9:59 am

Re: Accessing LS Ignition and PH Injector Resources

Postby stevieturbo on Tue Apr 19, 2022 7:20 am

what are you even asking ?
stevieturbo

Posts: 501
Joined: Fri Jul 11, 2008 3:32 am

Re: Accessing LS Ignition and PH Injector Resources

Postby adrian on Fri Apr 22, 2022 9:26 am

No, you have to add the hardware group classes to the project for those outputs to work. Below is an example of it done in a non-ICE project, if you set all of the configurable parameters to constants and you end up with only 3 channels for each group in Tune.
Attachments
Output Config.png
Output Config.png (22.96 KiB) Viewed 3731 times

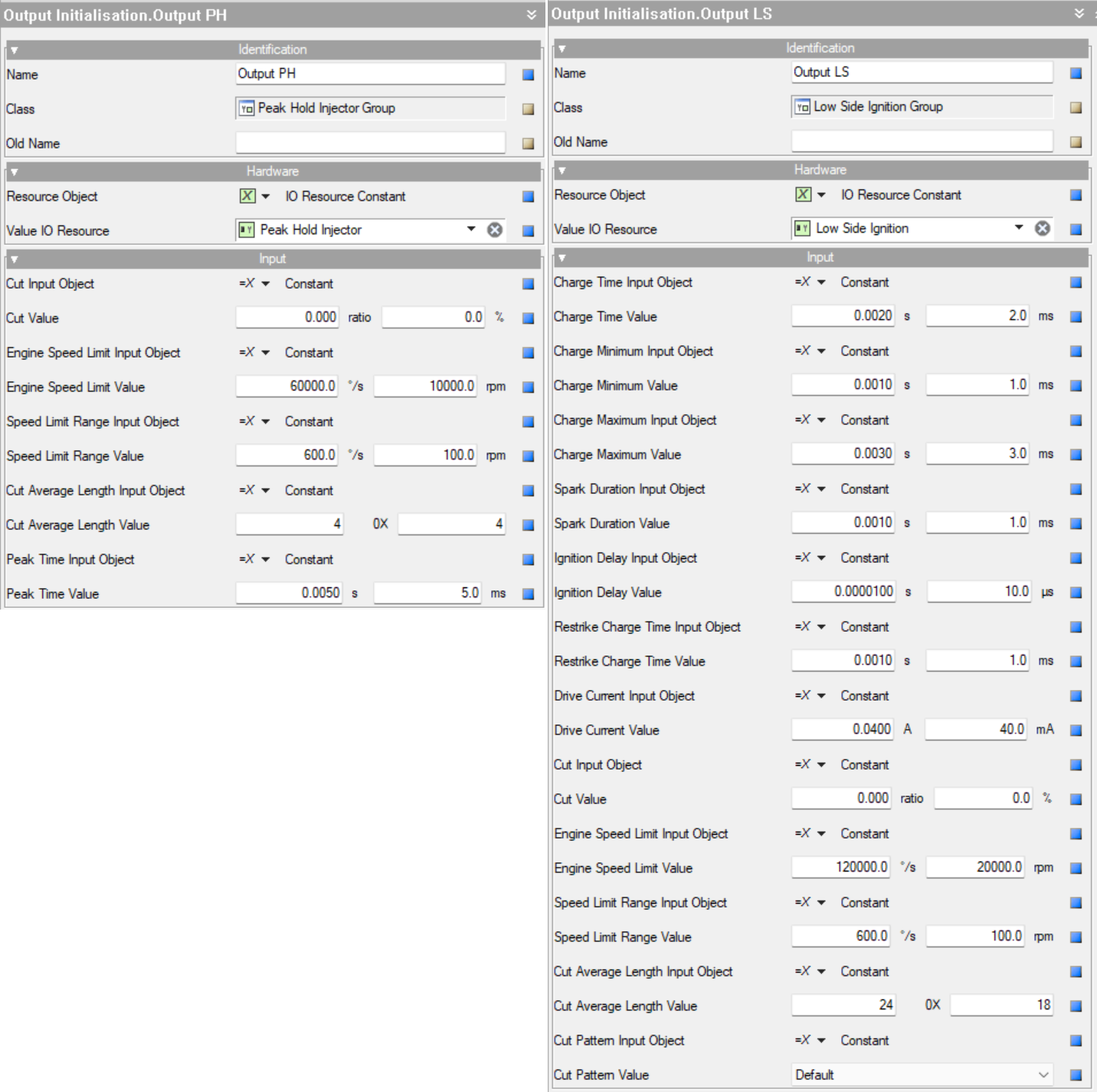

Output Group Settings.png
Output Group Settings.png (277.29 KiB) Viewed 3731 times
adrian
MoTeC

Posts: 719
Joined: Mon Apr 13, 2015 5:16 pm
