C125 dash pressure sensor

[Giardbusa]

I have M130 with dash C125. I have pressure sensor wired to the dash and working well in dash screen. But I can’t see that pressure sensor in the M1 tune. How can I access to that sensor from M1tune? Is it because I need create canbus adresse from the dash manadger first? How can I create that can bus adress?

[Stephen Dean]

Hi,

I have attached a draft copy of a document that shows the process of sending a CAN Message from the C1xx Dash into an M1.

[Giardbusa]

Hi! Thank you for your response. I alreaddy read document you sent to me But I still with job not done. At the page 4 of that document Appear menue box called (Change Comms Channel) I can`t find that menu box in my screan. You talk also to use the (Add ...button) I dont see that button in my screen And I dont see picture of it in your document too. I need dodument talking more step by step to making that job done. I hope you can help me more on that subject Thank you.

[Stephen Dean]

Hi,

It looks like I'm going to have to redo that document as the primary and backup copies that I have are both corrupted.

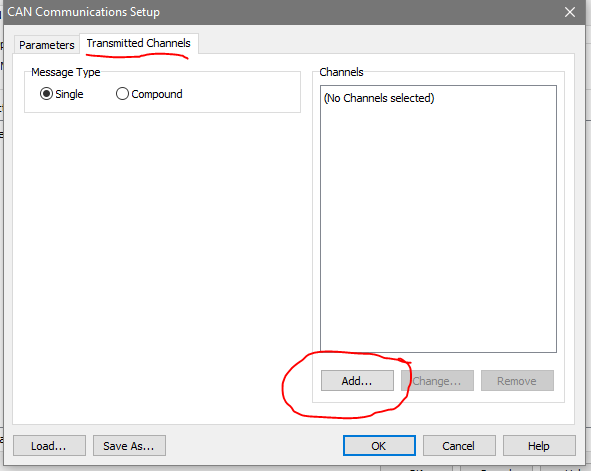

The Add button is found on the Transmitted Channels tab.

Add Button.PNG (13.18 KiB) Viewed 9375 times

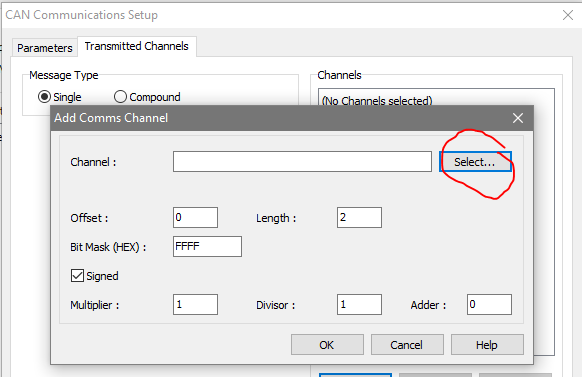

And the Select (or change if an existing channel is in place) is in the Add Comms Channel popup window.

Select button.PNG (16.64 KiB) Viewed 9375 times

[rntechnologies]

Hows this?

[Giardbusa]

Thank you all for your information I finally fix issue with your help.
