Channel Report Overlay

[jrblasco]

(i2 Std) Trying to overlay data using channel report. Using the split view I can see both laps in the text view, but the chart view only displays the main one. Tried all options in properties but can't get it to display them both.

[adrian]

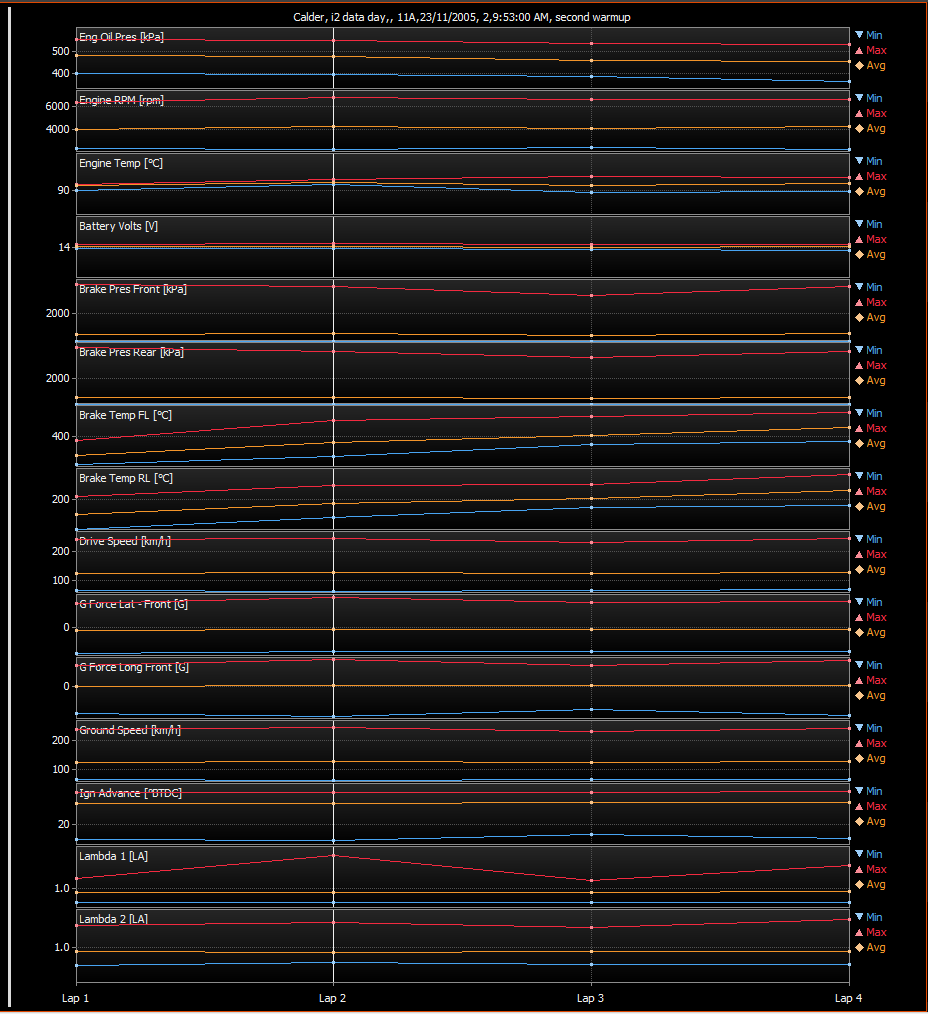

The reason there is no overlay on the graph is because it is too difficult to show all of the lines clearly when there are a large number of channels. Take the below image for instance, if we were to add a white overlay for every channel you wouldn't know which one was which. It would be considerably worse when you add a second overlay.
