Zx10 nosync error

[Shady16]

Has anyone run a m84 on the zx10 yet? This is my first motec and I'm having some difficulty getting it to sync. I'll provide what ever info that is needed. Thanks in advance.

[AlanB]

Can you send a couple of ref/sync captures, one with all the plugs in and one with cyl 1 plug removed?

[Shady16]

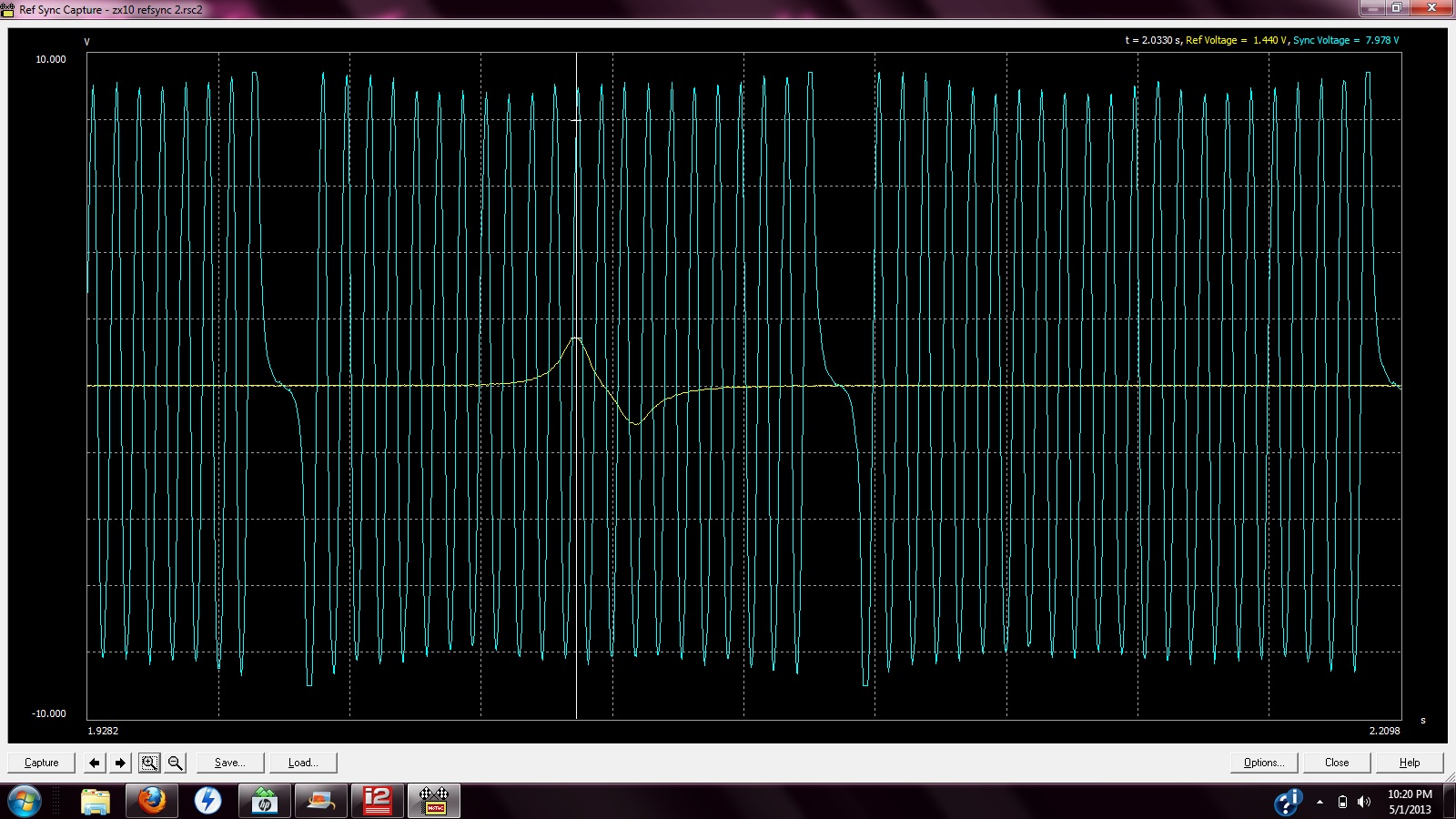

I Think i have my ref and sync sensors wired wrong. The Ref wiring is going to the Sync sensor and the Sync wiring is going to the Ref sensor. I am not sure how i missed this or the other people i sent the Capture to. Take and look and see what you think. Also i have not seen many Captures but it looks like my sensor voltage is really high during cranking on my ref sensor(sync sensor on this graph)
