BMW E36 M42 Startup - REF/SYNC
Posted:
Sat Oct 30, 2021 6:29 pmby mick41zxr
Hi,
Setting up a BMW E36 318is (M42).
Having trouble getting the engine to Sync.
Able to test clean spark & injectors. Getting a clean RSC file.

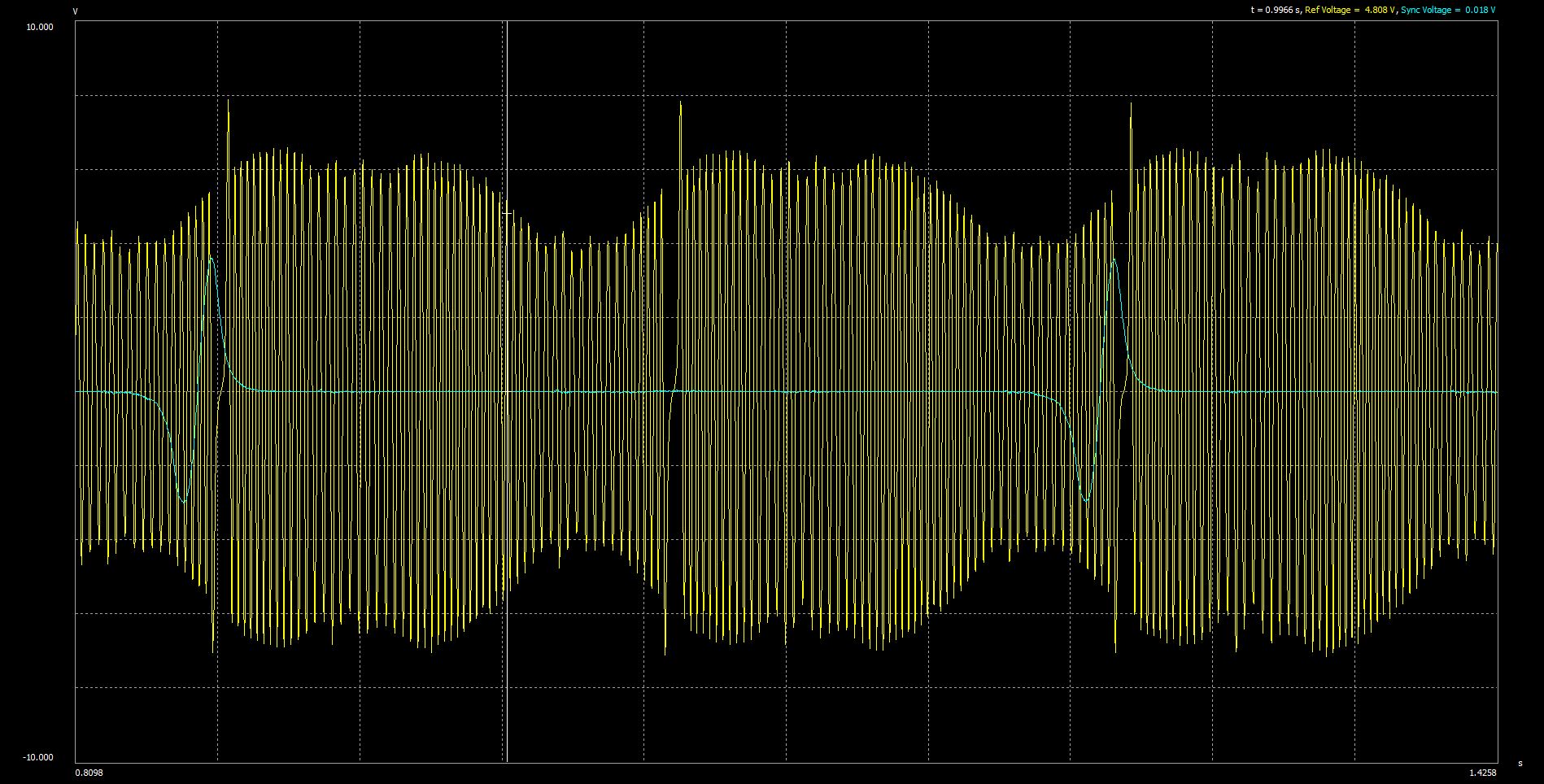

- REF/Sync
- RefSync-Capture.JPG (363.52 KiB) Viewed 13862 times
I believe I have CRIP set ok

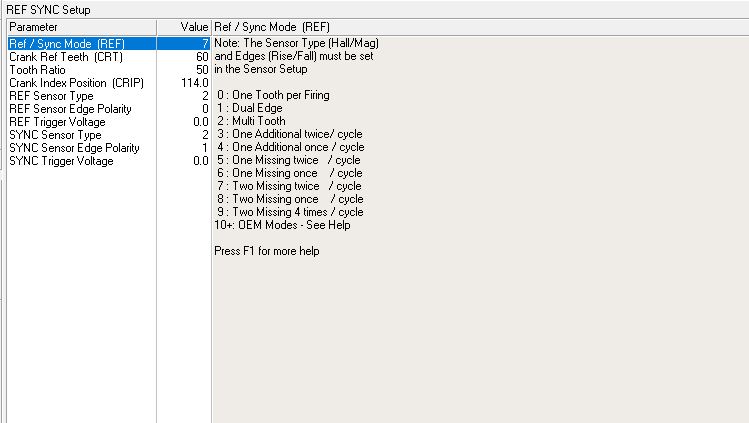

- CRIP
- CRIP-Setup.JPG (45.02 KiB) Viewed 13862 times
Does anyone have any suggestions.
Thanks,
Michael
Re: BMW E36 M42 Startup - REF/SYNC
Posted:
Sat Oct 30, 2021 6:32 pmby mick41zxr
I believe this to be the CRIP Setup

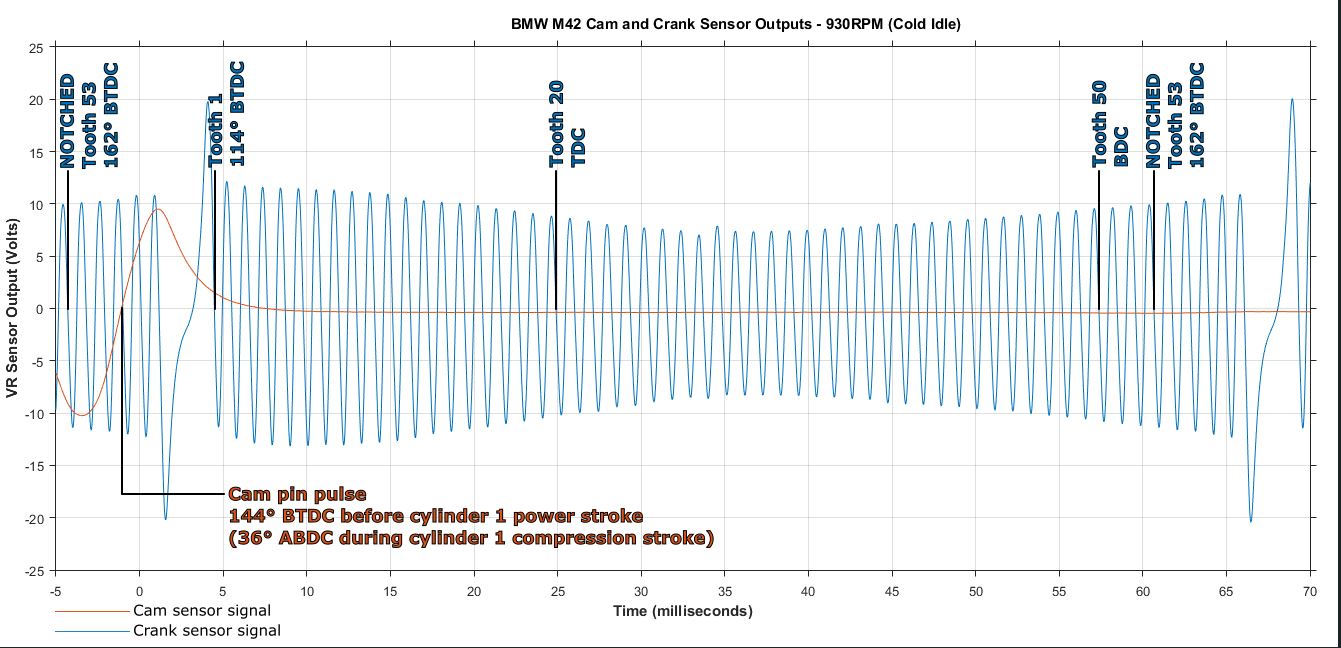

- M42 Crank Trigger.JPG (149.38 KiB) Viewed 13861 times

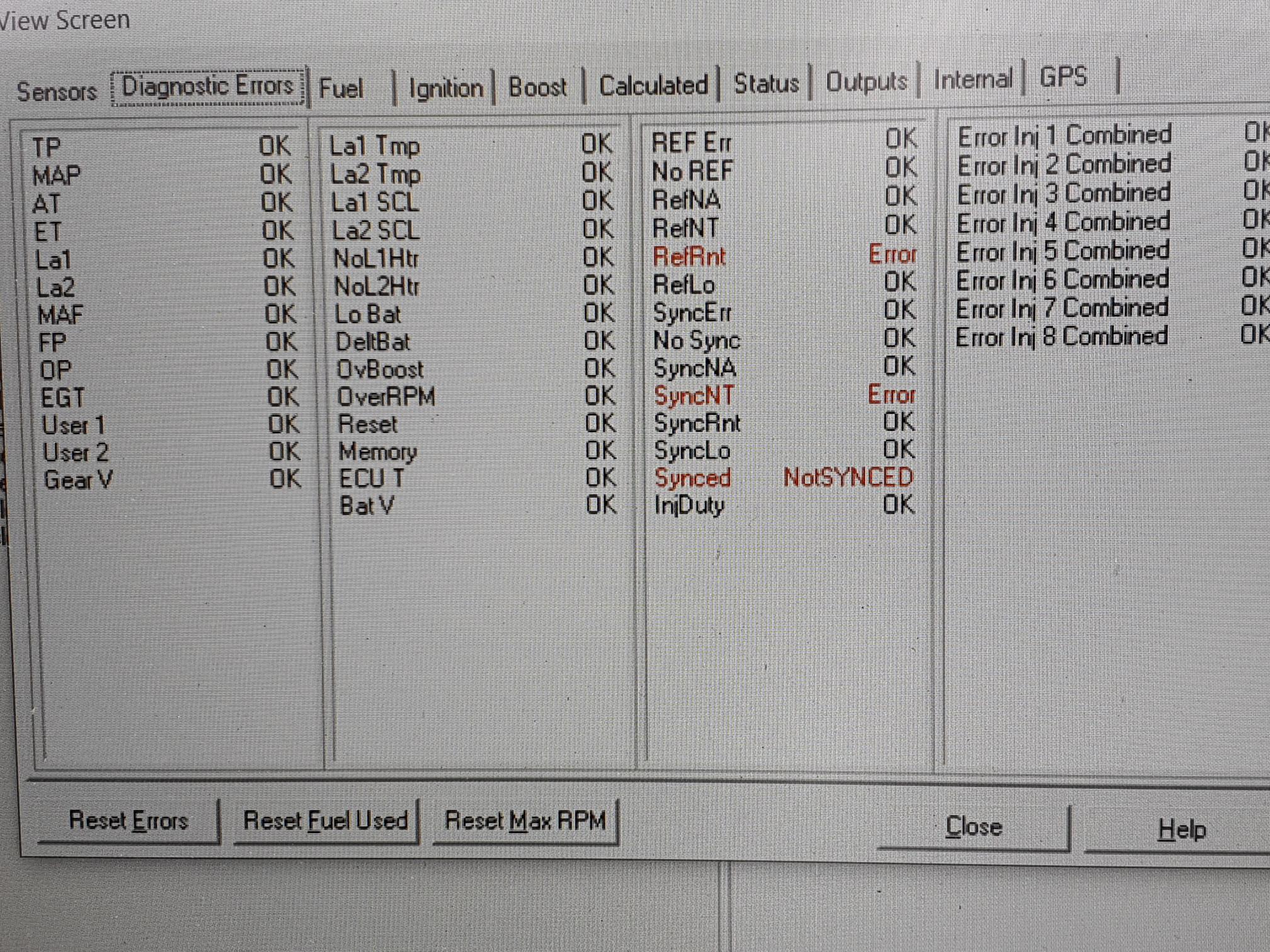

M84 file to see if I have made a mistake.
- error
- 20211030_150018.jpg (734.5 KiB) Viewed 13857 times
Any help appreciated.
Thanks,
Michael
Re: BMW E36 M42 Startup - REF/SYNC
Posted:
Sun Oct 31, 2021 8:03 amby GWRMOTORSPORT
Hi Michael, had a quick look at your ECU file and the ref & sync mag levels are all 9.5v,
they need to be set to approx 1/3 of the peak voltage at various RPM sites,
From the ref sync capture which seems to be at about 310 rpm I would use ref 1.3v and sync 1.2v
set the whole mag tables to this, it should sync up and start and then do some more captures and work out
the mag levels. Also the trigger wheel looks like its either running out of true or is out of shape,
the constant dip in the ref voltages just before the sync signal needs possible looking at.
Hope this helps
Regards
STEVE
GWR MOTORSPORT
PM if you need more help
Re: BMW E36 M42 Startup - REF/SYNC
Posted:
Mon Nov 01, 2021 8:27 pmby mick41zxr
Thanks Steve,
Changed Mag Tables & startup up straight away.
Much appreciated.
Michael
Re: BMW E36 M42 Startup - REF/SYNC
Posted:
Fri May 13, 2022 5:57 pmby muigandy
Thanks for trying to help!
318is ref-sync7 - rev-sync.rsc2
