3D histogram or 2D heat map in I2
Posted: Mon Sep 05, 2022 5:28 amGood day!
Does anyone know if it there is a way to generate a 3D histogram or 2D heat map in I2?
The histogram plot tool nearly achieve what I am looking for, but the second axis is created by the color bands.
The X axis use a first channel, the Y axis is either % of time or # of samples and the "Z" axis is created by the color band from a second channel.
See first picture
Actually, if we change the style of the plot using the "Cycle style" command we end up with a 2D number table, except that color band is still link to the Z axis, if the color bands where link to the % of time or # of samples, that would be perfect.
Is there was a way to created a 3D histogram with X axis as the first channel, Y axis as the second channel and the Z channel being band colored either % of time or # of samples?
The Scatter plot tool also nearly does it with the "Show Data Density", but if could control the bin size of the X and Y axis for the density scale that would be awesome.
See second picture
A 2D heat map would also work for me.
The solution am looking would be some thing similar the third picture.
Any idea how to do that?
M1 Tune is seem to be using a part of the I2 interface and it seem M1 Tune can display 3D graph, I thought I might be lucky.
Cheers, François.
Does anyone know if it there is a way to generate a 3D histogram or 2D heat map in I2?
The histogram plot tool nearly achieve what I am looking for, but the second axis is created by the color bands.
The X axis use a first channel, the Y axis is either % of time or # of samples and the "Z" axis is created by the color band from a second channel.
See first picture
- Histogram.JPG (171.59 KiB) Viewed 21778 times
Actually, if we change the style of the plot using the "Cycle style" command we end up with a 2D number table, except that color band is still link to the Z axis, if the color bands where link to the % of time or # of samples, that would be perfect.
Is there was a way to created a 3D histogram with X axis as the first channel, Y axis as the second channel and the Z channel being band colored either % of time or # of samples?

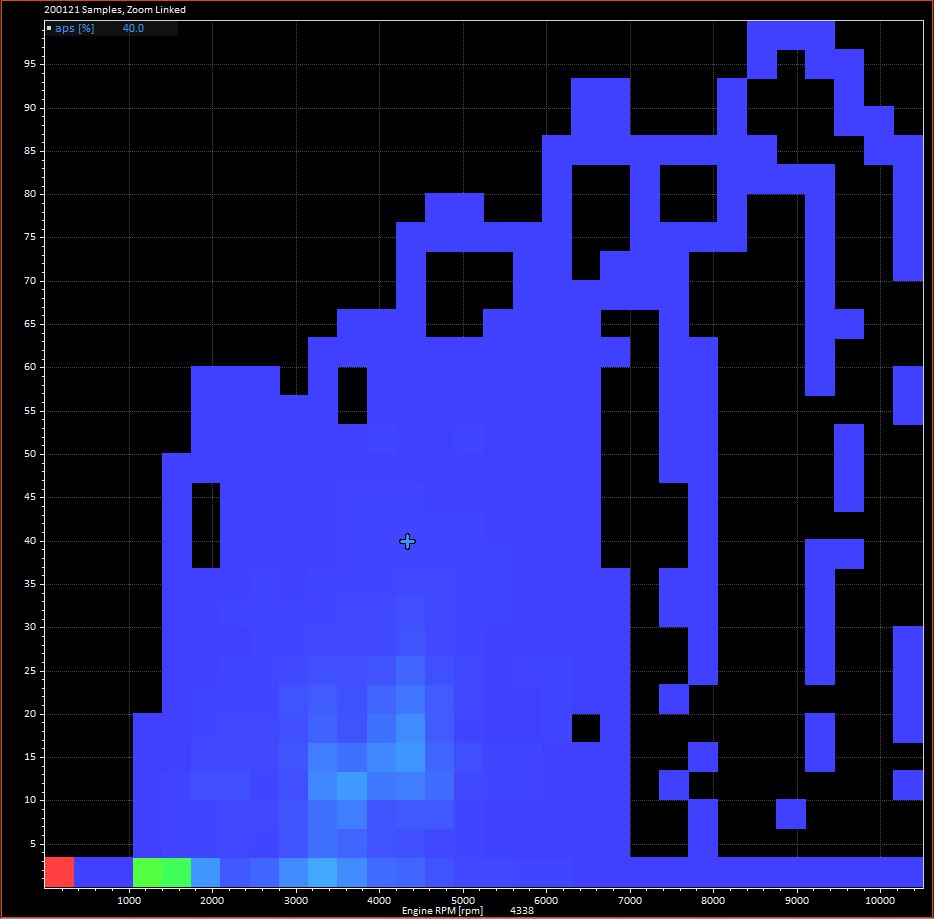

The Scatter plot tool also nearly does it with the "Show Data Density", but if could control the bin size of the X and Y axis for the density scale that would be awesome.
See second picture
- Scatter Plot.JPG (96.86 KiB) Viewed 21778 times
A 2D heat map would also work for me.

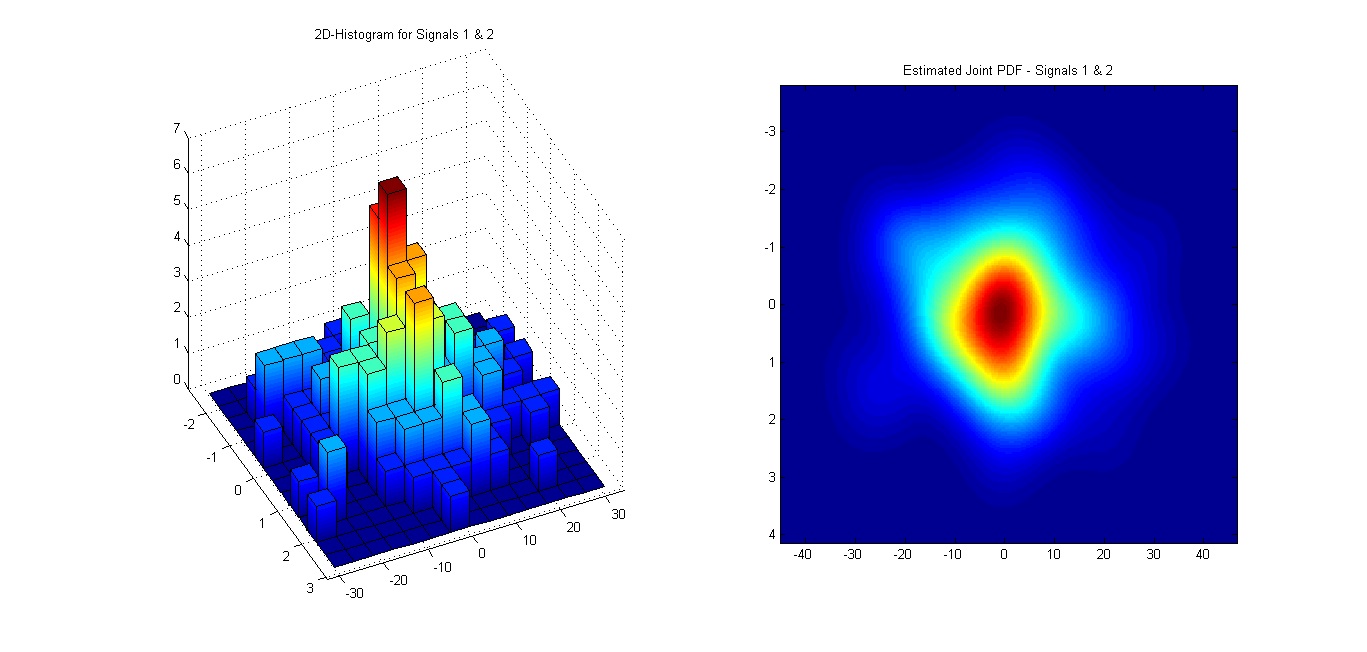

The solution am looking would be some thing similar the third picture.
- 3D-2D histogram.jpg (144.94 KiB) Viewed 21778 times
Any idea how to do that?
M1 Tune is seem to be using a part of the I2 interface and it seem M1 Tune can display 3D graph, I thought I might be lucky.
Cheers, François.
