1zz coil on motec
Posted:
Sun Oct 16, 2011 11:26 pmby sflee

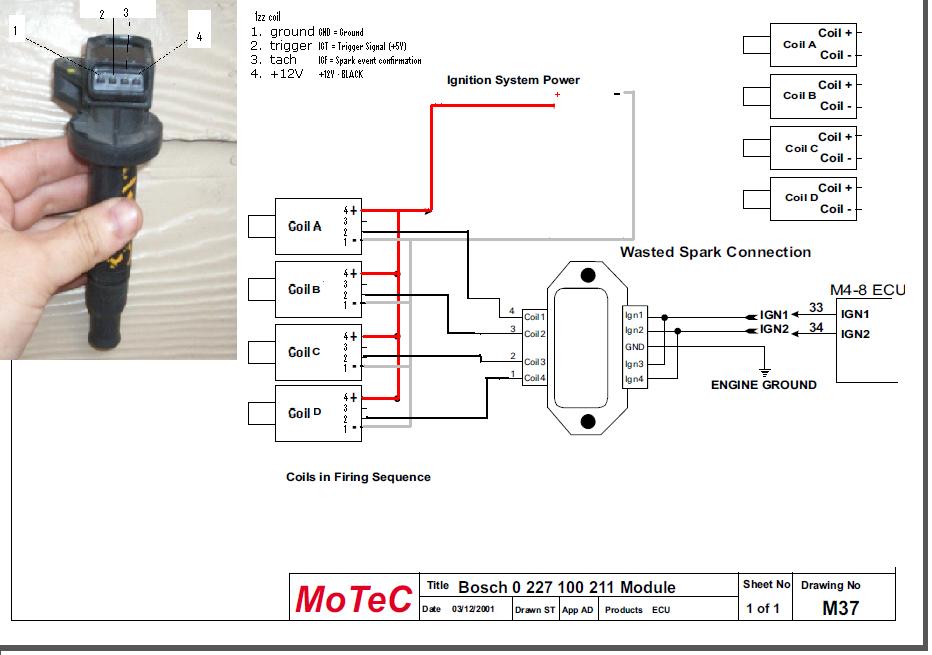

does this connection look correct?
it is a 4 pin coil
toyota 1zz coil
- 1zz.JPG (72.53 KiB) Viewed 22049 times
see attach picture
Re: 1zz coil on motec
Posted:
Mon Oct 17, 2011 2:48 pmby Allan L
Looks like they have a built in igniter according to the information you supplied, so the +5v trigger will go directly to the ecu, the external igniter is not required.
your next problem will be dwell settings for them!
...looks like they might be a good fit for a 1UZ too... hmmmmm...
Re: 1zz coil on motec
Posted:
Mon Oct 17, 2011 9:15 pmby Chris Wilson
If these are the same coils my post from a while back got some nice answers:
viewtopic.php?f=11&t=1666&p=7570&hilit=igniter#p7570
Re: 1zz coil on motec
Posted:
Mon Oct 17, 2011 11:46 pmby Holmz
Allan L wrote:Looks like they have a built in igniter according to the information you supplied, so the +5v trigger will go directly to the ecu, the external igniter is not required.
...
M48 only has 2 ignition outputs - otherwise what you say makes perfect sense and a cleaner wiring setup.
Re: 1zz coil on motec
Posted:
Tue Oct 18, 2011 12:08 amby sflee
ah ok
I take it the external igniter only needed on the two pin coil
thank for the info
so do I just join coil A,C (pin2) trigger together ? and coil B,D (pin 2)trigger together to run in waste spark mode (m48)
