1zz coil on motec

[sflee]

does this connection look correct?
it is a 4 pin coil
toyota 1zz coil

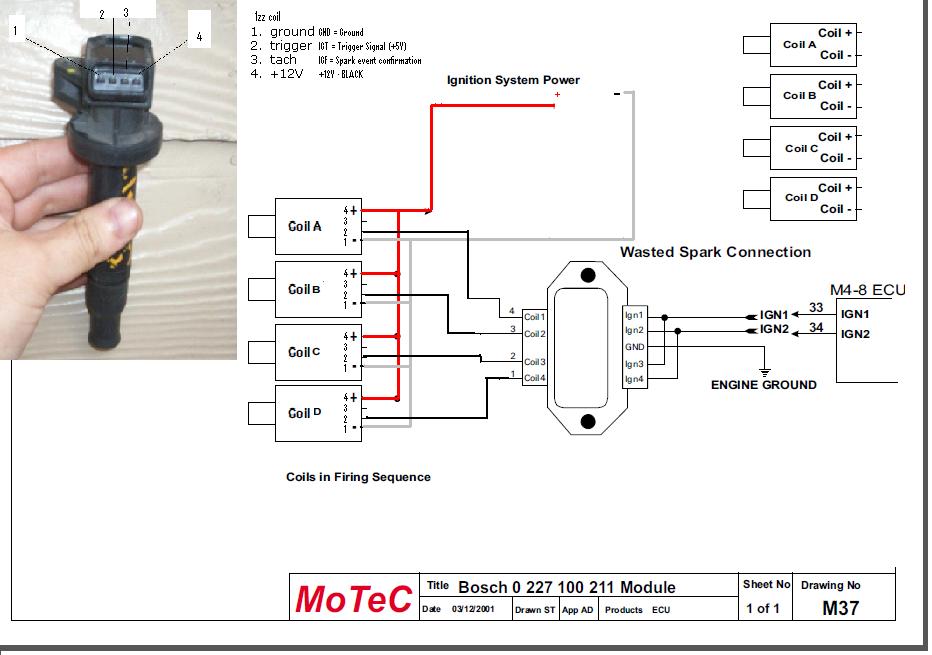

see attach picture

[Allan L]

Looks like they have a built in igniter according to the information you supplied, so the +5v trigger will go directly to the ecu, the external igniter is not required.

your next problem will be dwell settings for them!

...looks like they might be a good fit for a 1UZ too... hmmmmm...

[Chris Wilson]

If these are the same coils my post from a while back got some nice answers:

viewtopic.php?f=11&t=1666&p=7570&hilit=igniter#p7570

[Holmz]

Looks like they have a built in igniter according to the information you supplied, so the +5v trigger will go directly to the ecu, the external igniter is not required.
...

M48 only has 2 ignition outputs - otherwise what you say makes perfect sense and a cleaner wiring setup.

[sflee]

ah ok

I take it the external igniter only needed on the two pin coil

thank for the info

so do I just join coil A,C (pin2) trigger together ? and coil B,D (pin 2)trigger together to run in waste spark mode (m48)
