Is a drawing available which has the radii of the outside profile. Needed to design a matched pocket for a dash.

Thx,

Tyler

RaceMechaniX wrote:Is a drawing available which has the radii of the outside profile. Needed to design a matched pocket for a dash.

Thx,

Tyler

The down loads show some drawings.
http://www.motec.com.au/downloads/downloaddatasheets/
Looks more like half of an ellipse than a radius, but you get the semi major and semi minor axes so it should be esy enough to noodle it out with a piece of string.

Thanks Holmz,

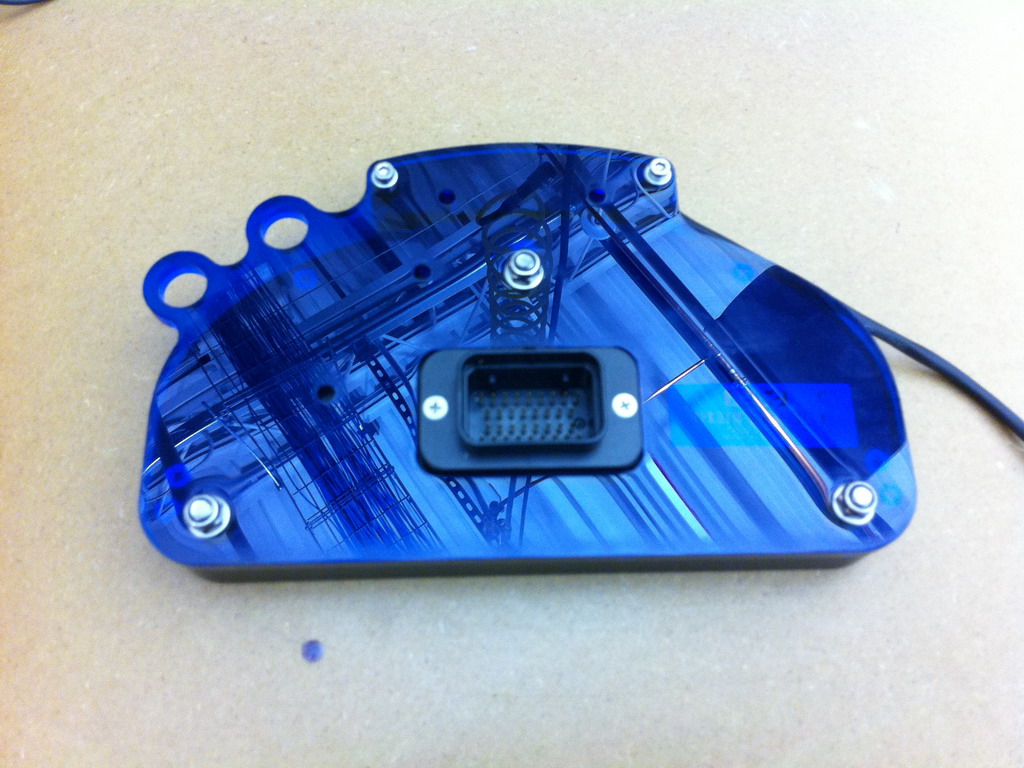

I have these dimensions already in the CAD model, but the profile on the top seems to be three radii blended together. There is the top ellipse and either one or two radii on the side. A laser cut template against the CDL outline suggests there is more than one radius on the side.

The old pics do not show the edge mismatch, but one exists.

TG
